Getting Started

Systemd

sudo nano /etc/systemd/system/py3-kms.service
or
vim /usr/lib/systemd/system/pykms.service

[Unit]
Description=py3-kms
After=network.target
StartLimitIntervalSec=0

[Service]
Type=simple
Restart=always
RestartSec=1
KillMode=process
User=root
ExecStart=/usr/bin/python3 /usr/local/pykms/pykms_Server.py 0.0.0.0 1688 -V DEBUG -F /usr/local/pykms/logs/pykms_logserver.log

[Install]
WantedBy=multi-user.target

Check syntax with sudo systemd-analyze verify py3-kms.service, correct file permission (if needed) sudo chmod 644 /etc/systemd/system/py3-kms.service, then reload systemd manager configuration sudo systemctl daemon-reload,
start the daemon sudo systemctl start py3-kms.service and view its status sudo systemctl status py3-kms.service. Check if daemon is correctly running with cat </path/to/your/log/files/folder>/pykms_logserver.log. Finally a
few generic commands useful for interact with your daemon here.

二、激活

Activation Procedure

The product asks for a key during installation, so it needs you to enter the GVLK. Then the user can set connection parameters, while KMS server must already be running on server machine. Finally with specific commands, activation occurs automatically and can be extended later every time for another 180 (or 30 or 45) days.

Windows

The //nologo option of cscript was used only to hide the startup logo.

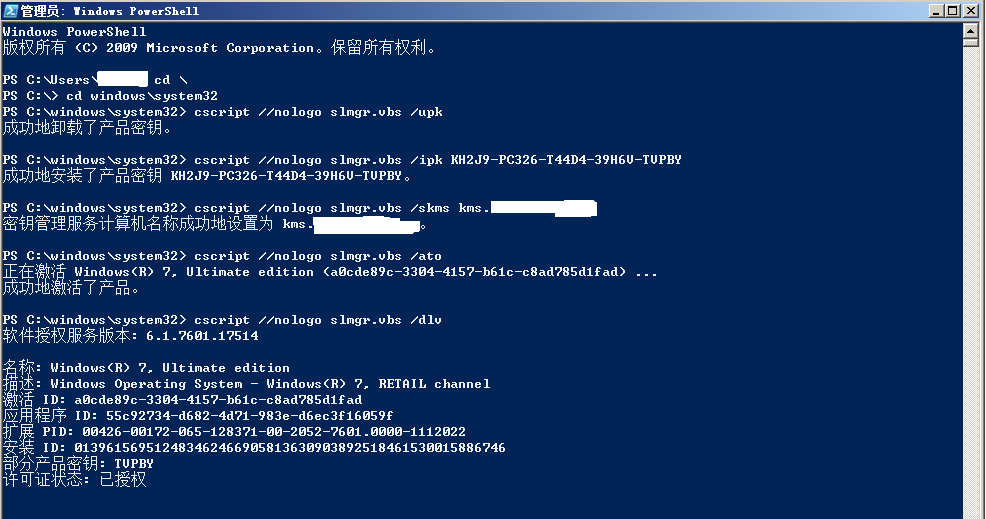

Windows PowerShell
版权所有 (C) 2009 Microsoft Corporation。保留所有权利。

PS C:\Users\userName> cd \
PS C:\> cd windows\system32
PS C:\windows\system32> cscript //nologo slmgr.vbs /upk
成功地卸载了产品密钥。

PS C:\windows\system32> cscript //nologo slmgr.vbs /ipk KH2J9-PC326-T44D4-39H6V-TVPBY
成功地安装了产品密钥 KH2J9-PC326-T44D4-39H6V-TVPBY。

PS C:\windows\system32> cscript //nologo slmgr.vbs /skms kms.xxxx.com
密钥管理服务计算机名称成功地设置为 kms.xxxx.com。

PS C:\windows\system32> cscript //nologo slmgr.vbs /ato
正在激活 Windows(R) 7, Ultimate edition (a0cde89c-3304-4157-b61c-c8ad785d1fad) ...
成功地激活了产品。

PS C:\windows\system32> cscript //nologo slmgr.vbs /dlv
软件授权服务版本: 6.1.7601.17514

名称: Windows(R) 7, Ultimate edition
描述: Windows Operating System - Windows(R) 7, RETAIL channel
激活 ID: a0cde89c-3304-4157-b61c-c8ad785d1fad
应用程序 ID: 55c92734-d682-4d71-983e-d6ec3f16059f
扩展 PID: 00426-00172-065-128371-00-2052-7601.0000-1112022
安装 ID: 013961569512483462466905813630903892518461530015886746
部分产品密钥: TVPBY
许可证状态: 已授权

0. Run a Command Prompt as Administrator (you are directly in C:\Windows\System32 path).
1. This is optional, it's for unistalling any existing product key.
2. Then put in your product's GVLK.
3. Set connection parameters.

4. Try online activation, but if that fails with error...

   • 0xC004F074 You’ll most likely have to configure your firewall that it accepts incoming connections on TCP port 1688. So for Linux users (server-side with pykms_Server.py running): sudo ufw allow 1688 (revert this rule sudo ufw delete allow 1688) should fix that.
   • 0xC004F069 Take a look into the issue here, it will may help you...
5. Attempt online activation (now with traffic on 1688 enabled).
6. View license informations (optional).

Office

Note that you’ll have to install a volume license (VL) version of Office. Office versions downloaded from MSDN and / or Technet are non-VL.

0. Run a Command Prompt as Administrator and navigate to Office folder cd C:\ProgramFiles\Microsoft Office\OfficeXX (64-bit path) or cd C:\ProgramFiles(x86)\Microsoft Office\OfficeXX (32-bit path), where XX = 14 for Office 2010,
   15 for Office 2013, 16 for Office 2016 or Office 2019.

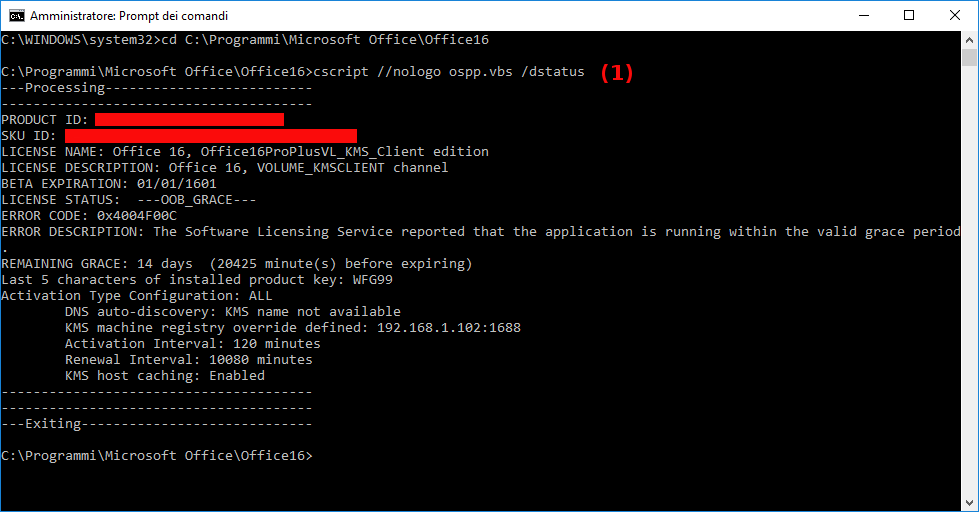

1. As you can see, running /dstatus, my Office is expiring (14 days remaining).

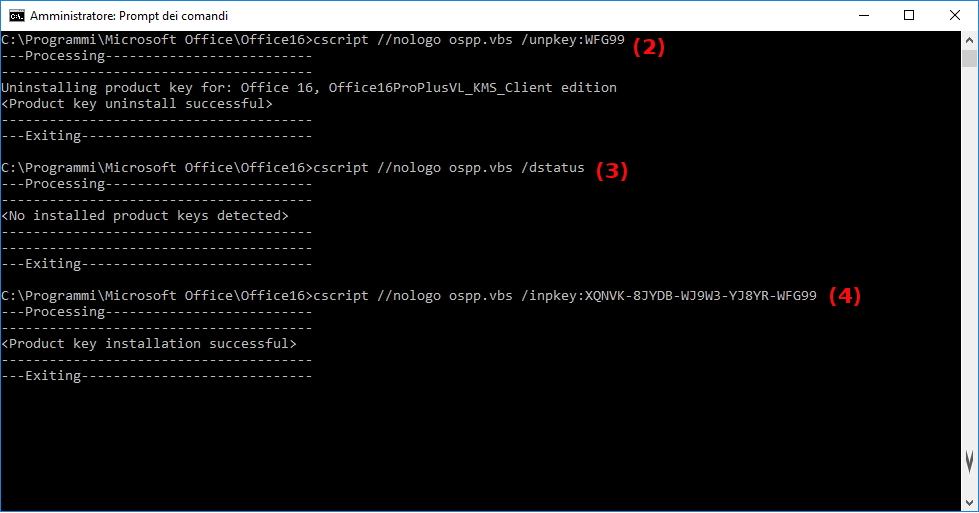

2. Only for example, let's go to uninstall this product.
3. This is confirmed running /dstatus again.
4. Now i put my product's GVLK (and you your key).

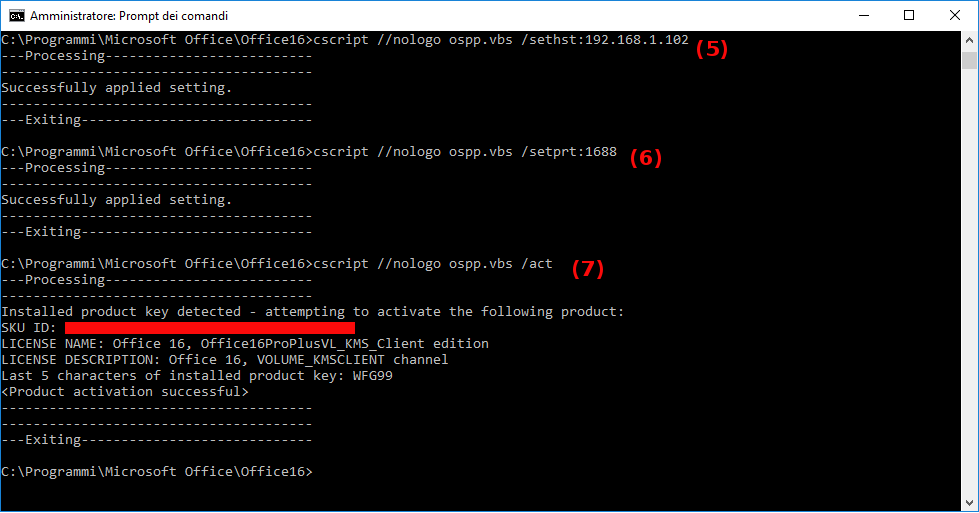

5. Set the connection parameter KMS server address.
6. Set the connection parameter KMS server port.
7. Activate installed Office product key.

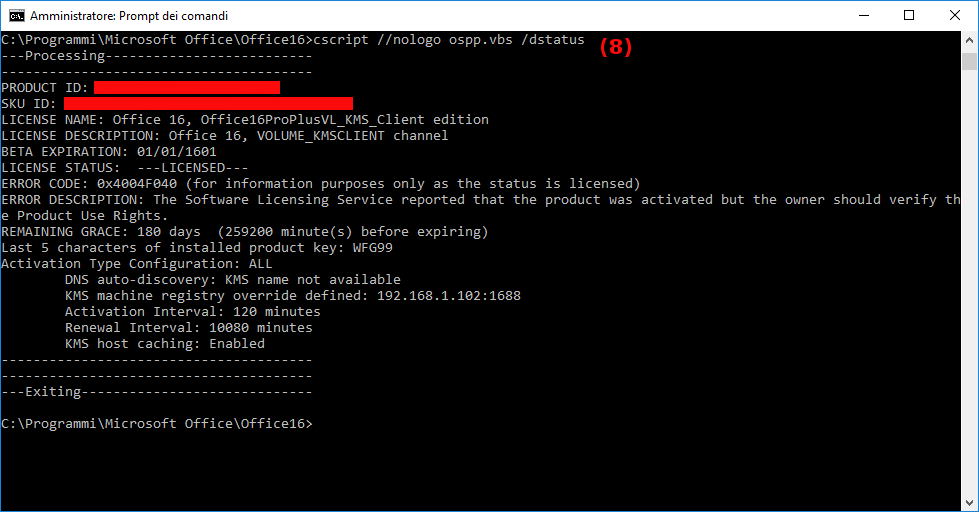

8. View license informations (in my case product is now licensed and remaining grace 180 days as expected).

三、GVLK Keys

These are keys, which can be used to activate a product with py-kms (note this keys are provided officially by Microsoft). py-kms will not reject any of your keys, instead the product will often revalidate the given key - and
sometimes even reject it by itself (often due too many uses - in that case try to use an other one).

Windows

Windows Server 2022

Windows Server 2019

Windows Server 2016

Windows 10 & Windows 11

Windows Server 2012 R2

Windows 8.1

Windows Server 2012

Windows 8

Windows Server 2008 R2

Windows 7

Windows Server 2008

Windows Vista

Office

Office 2021

Office 2019

Office 2016

Office 2013

Office 2010
