Tacport堡垒机安装

操作系统：RockyLinux 9.4

堡垒机：tacport-server-4.0.6-preview.tar.gz

数据库：mysql-5.7.44-1.el9.x86_64.rpm

一、安装数据库：

rpm -ivh mysql-5.7.44-1.el9.x86_64.rpm
source /etc/profile.d/mysql.sh

# 数据库初始密码为空
### 直接回车
mysql -uroot -p

二、创建Tacport数据库

# 配置数据库root密码
mysql> grant all on *.* to 'root'@'localhost' identified by 'root@123';
Query OK, 0 rows affected, 2 warnings (0.00 sec)
# 创建tacport数据库
mysql> create database tacport character set utf8 collate utf8_general_ci;
Query OK, 1 row affected (0.00 sec)
# 创建用户和密码并授权
mysql> grant all on tacport.* to 'tacport'@'127.0.0.1' identified by 'tacport';
Query OK, 0 rows affected, 1 warning (0.00 sec)
# 刷新授权
mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)

mysql> select user,host from mysql.user;
+---------------+-----------+
| user          | host      |
+---------------+-----------+
| tacport       | 127.0.0.1 |
| mysql.session | localhost |
| mysql.sys     | localhost |
| root          | localhost |
+---------------+-----------+
4 rows in set (0.00 sec)

三、安装redis

dnf install -y redis

四、安装 Tacport

tar zxf tacport-server-4.0.6-preview.tar.gz
cd tacport-server-4.0.6-preview

# 执行install.sh
bash install.sh

五、配置文件编辑

[root@rocky etc]# cat config.yaml
#
# TacPort Configuration / TacPort 配置文件
#
# =======================================================================
# Important!!! Please change all value marked as "PLEASE-CHANGE-THIS"
# 非常重要！！请修改所有标记为“PLEASE-CHANGE-THIS”的配置项！
# =======================================================================

# node_id:
#   an integer greater than 0, when deploying multiple nodes, ensure that the node_id are not duplicated, default to 1.
#   一个大于0的整数，表明节点ID。部署多个节点是要确保各节点ID不重复。默认为 1。
#
#node_id: 1

# node_addr:
#   address (IP or Domain) which user can access outside.
#   此节点的外部访问地址(IP或域名)
#
node_addr: "192.168.10.4"

# =======================================================================
# global settings / 全局设置
# =======================================================================

# mode: [test|release]
#   running mode, default to release.
#   运行模式，默认为 release。
#
#mode: "release"

# log_level: [debug|verbose|info|warn|error]
#   log level, default to info.
#   日志等级，默认为 info。
#
#log_level: "info"

# log_to_file: [yes|no]
#   save log into log-file or not, default to yes.
#   是否要将日志输出到日志文件，默认为 yes。
#
#log_to_file: yes

# data_path:
#   path to save data, default to "{%EXEC_PATH%}/data".
#   数据存储路径，默认为"{%EXEC_PATH%}/data"，其中 {%EXEC_PATH%} 为服务主程序所在路径
#
#data_path: "{%EXEC_PATH%}/data"

# log_path:
#   default to "{%DATA_PATH%}/log"
#   日志文件存储路径，默认为"{%DATA_PATH%}/log"，其中，{%DATA_PATH%} 为数据存储路径
#
#log_path: "{%DATA_PATH%}/log"

# record_path:
#   default to "{%DATA_PATH%}/record"
#   录像文件存储路径，默认为"{%DATA_PATH%}/record"
#
#record_path: "{%DATA_PATH%}/record"

# default_language: [zh-Hans|zh-Hant|en-US]
#   use default language while no language specified, default to zh-Hans.
#   默认语言，当未能根据环境检测到语言时，将使用此默认语言。默认为 zh-Hans。
#     zh-Hans  简体中文
#     zh-Hant  繁体中文--尚不支持
#     en-US    English
#
default_language: "zh-Hans"

#------------------------------------------------------
# database configuration / 数据库配置
#   MySQL/MariaDB/TiDB/...
#------------------------------------------------------

# db_addr:
#   address of database, default to "127.0.0.1:3306" .
#   数据库地址，默认为 "127.0.0.1:3306"。
db_addr: "127.0.0.1:3306"

# db_user: database user / 数据库用户名
#
db_user: "tacport"

# db_name: database name / 数据库的库名
#
db_name: "tacport"

# db_pass: password of database / 数据库密码
#
db_pass: "tacport"

# secret_key:
#   key of encryption for secret data when save to database, no default value.
#     notice: you should write this secret_key down at a safe place.
#     if you lose this secret_key, your TacPort service can not use/migration/recover anymore.
#   私密数据加密存放到数据库时所用的密钥，无默认值。
#     注意：您应当将此密钥记下来，并存放到一处安全所在。
#     如果您丢失了此密钥，您的 TacPort 服务将无法使用/迁移/恢复。
#
secret_key: "root@123"

# log_sql: [yes|no]
#   log every SQL statement or not, default to no.
#     be careful, turn this to yes could save private information into console or log file, use at your own risk.
#     on "release" mode, log_sql is disabled and always be "no".
#   是否记录每一条SQL语句到日志中，默认为 no。
#     小心，SQL中可能包含私密信息，设置此配置项为 yes 可能会将私密信息输出到控制台或写入日志文件，请斟酌其中的风险.
#     出于风险考虑，在"release"模式下，"log_sql"总是会被禁用。
#
#log_sql: no

#------------------------------------------------------
# redis configuration / redis 配置
#------------------------------------------------------

# redis_mode: [standalone|sentinel|cluster]
#   deployment mode of redis, default to standalone.
#   redis的部署模式，默认为 standalone。
#
redis_mode: standalone

# redis_master:
#   master name of redis instance group, for redis-sentinel mode only.
#   redis实例组的主节点名称，仅用于redis哨兵模式。
#redis_master: ""

# redis_addr:
#   address of redis, should be one address, or multiple address split by commas. default to "127.0.0.1:6379"
#   redis地址，可以为单独地址，或者多个用逗号分割的redis地址。默认为 "127.0.0.1:6379"
#   e.g. / 示例
#     standalone/单机模式: "127.0.0.1:6379"
#     sentinel/cluster/哨兵模式/集群模式: "192.168.0.2:6379, 192.168.0.3:6379, 192.168.0.4:6379"
#
redis_addr: "127.0.0.1:6379"

# redis_pass: redis password / redis访问密码
#
#redis_pass: ""

# redis_index:
#   redis database index(0~15), ignored in redis-cluster mode, default to 0.
#   redis数据库编号(0~15)，在集群模式下此配置项被忽略。默认为0.
#
#redis_index: 0

# ==================================================
# node services settings / 节点业务服务设置
# ==================================================

# service: (api,ssh,rdp,vnc,telnet,...)
#   services available on this node, one or more of `api/ssh/rdp/vnc/telnet/...`, default to ["api"].
#   此节点承载的服务，可以为 `api/ssh/rdp/vnc/telnet/...` 之中的一个或多个，默认为 ["api"] 。
#
#   api: API service(including WEB-UI front-end) / API服务(含前端WEB-UI)
#   ssh: SSH/SFTP Proxy / SSH/SFTP转发服务
#   rdp: Remote Desktop Protocol Proxy(under development) / 远程桌面RDP协议的转发服务(开发中)
#   vnc: Virtual Network Console Proxy(under development) / 虚拟远程控制台VNC协议的转发服务(开发中)
#   telnet: Telnet Proxy(under development) / Telnet远程协议转发服务(开发中)
#
service: [ "api" ]

# --------------------------------------------------
# API services settings / API服务配置
# --------------------------------------------------

# api_instance: [1~16]
#   how many process to serve api, default to 1.
#   运行api服务的实例数量，默认为 1。
#
api_instance: 1

# api_listen_port:
#   user visit such port to access API service, default to 52100.
#   监听端口，用户通过此端口访问api服务，默认为 52100。
#
api_listen_port: 52100

# api_mapping_port:
#   used for containerized deployment, specifies the host port mapped to this api service port. default to 0 if the
#   host port is the same as the service listening port.
#   映射端口，用于容器化部署时，指明映射到此api服务端口的宿主机端口。默认为0，表示宿主机端口与服务监听端口一致。
#
#api_mapping_port: 0

# api_log_level:
#   log level, should be one of inherit/debug/verbose/info/warn/error, default to inherit.
#     inherit means use global log_level setting.
#   日志等级，可以为 inherit/debug/verbose/info/warn/error 之一，默认为 inherit。
#     inherit 表示继承全局设置中的日志等级。
#
api_log_level: inherit

# api_log_http: [yes|no]
#   log every HTTP request or not, default to no.
#   是否记录每一个HTTP请求，默认为 no。
#
api_log_http: no

# api_use_builtin_web: [yes|no]
#   provide web-ui front-end by this API service or not, default to yes.
#   是否使用内建的前端WEB-UI服务，默认为 yes。
#
api_use_builtin_web: yes

# api_web_path:
#   only available when api_use_builtin_web set, specify the path to the front-end files, default to "{%EXEC_PATH%}/web".
#   仅当设置了 api_use_builtin_web 时有效，指定前端文件的路径，默认为 "{%EXEC_PATH%}/web"。
#
api_web_path: "{%EXEC_PATH%}/web"

# --------------------------------------------------
# SSH proxy settings / SSH协议转发服务配置
# --------------------------------------------------

# ssh_instance:  [1~16]
#   how many process to serve ssh proxy, default to 1.
#   运行SSH协议转发服务的实例数量，默认为 1。
#
#ssh_instance: 1

# ssh_listen_port:
#   user visit such port to access ssh proxy service, default to 52101.
#   监听端口，用户通过此端口访问ssh协议转发服务，默认为 52101。
#
#ssh_listen_port: 52101

# ssh_mapping_port:
#   used for containerized deployment, specifies the host port mapped to this ssh proxy service port. default to 0 if the
#   host port is the same as the service listening port.
#   映射端口，用于容器化部署时，指明映射到此ssh协议转发服务端口的宿主机端口。默认为0，表示宿主机端口与服务监听端口一致。
#
#ssh_mapping_port: 0

#
#
#ssh_log_level: inherit

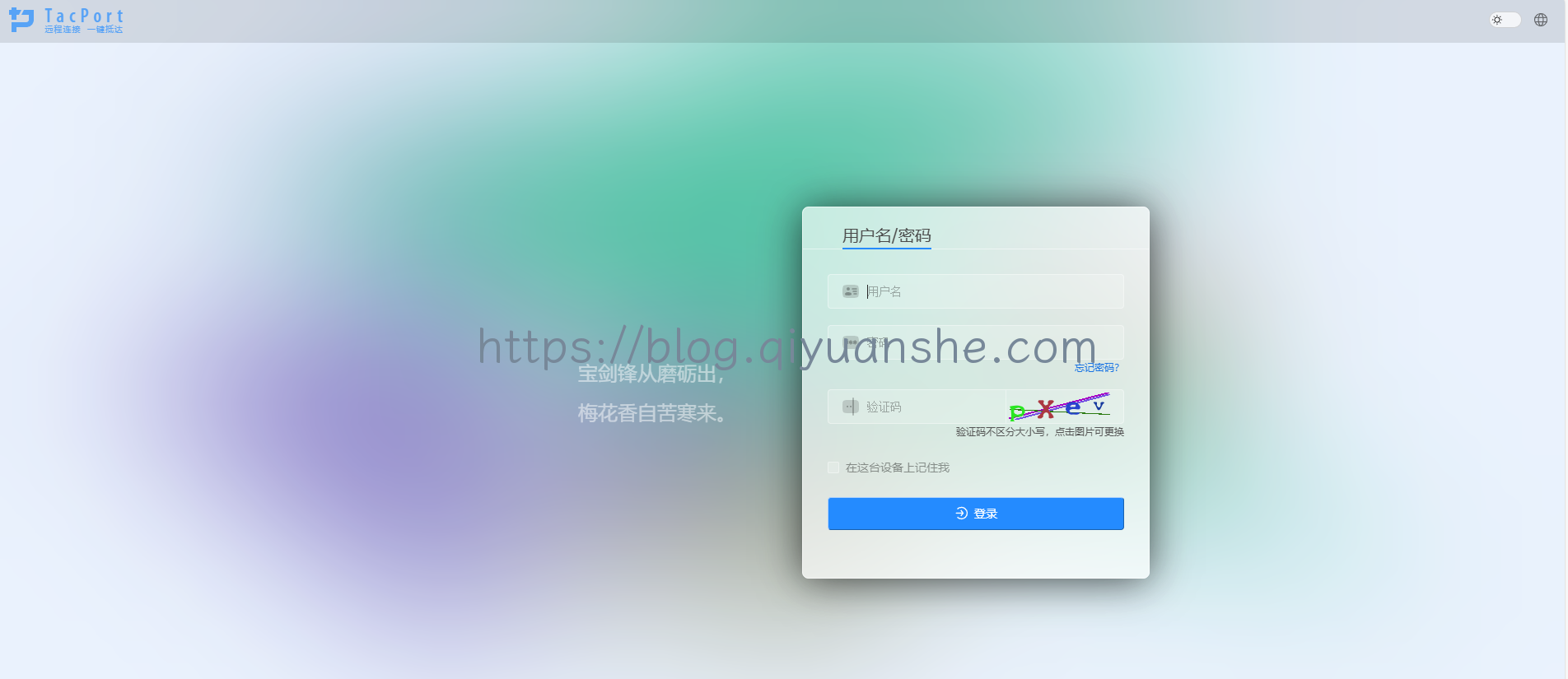

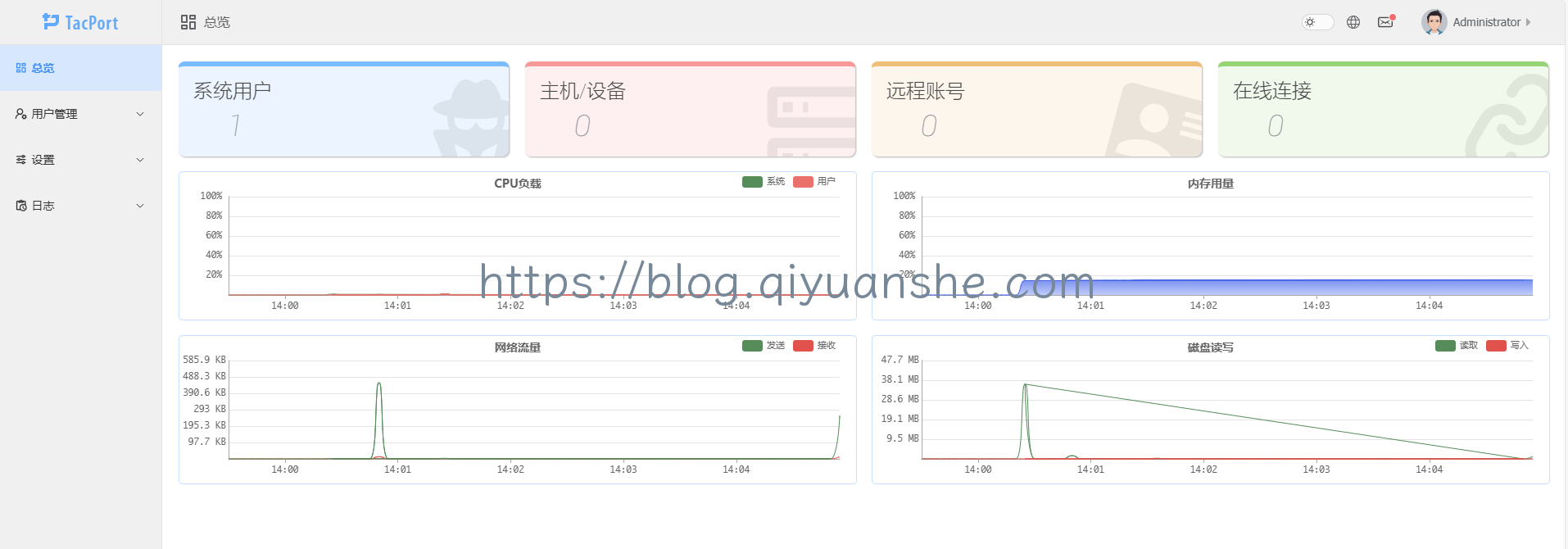

六、访问web界面

http://ip:52100/
